How to use FMLE – Flash Media Live Encoder

You can download FMLE here.  Or if you using a MAC computer you can download it directly from Adobe site here.

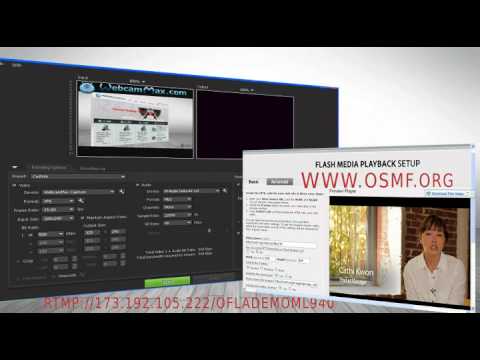

Install it on your computer.  when you run it, it looks like this:

click on the images to see the all picture.

on the left you select your camera and you enter your settings, important thing is your Bitrate, if you order wowza from us you should use the bitrate allocated to your account, on the wowza control panel on service overview click configure and then limits, you will see the Maximum Bitrate for your account, you should be slightly less, if it says 480kbps try to setup the FMLE that both video and audio are below 450kbps. If you using red5 then I suggest you use something around 450kbps, anything above this number and your stream will have issues.

On the right side of the FMLE you configure the RTMP.  Login to your wowza control panel find the FMS URL and stream name, enter it on the FMLE and then click “Connect”

after you click connect a little window pops up and you need to enter the username and password, username is usually the stream name, this information you can find on the wowza control panel.

Red5 will not have this option of securing the RTMP.

Going back to stream settings on the left, under the “Device” where you select your camera, you the Format, for wowza use always H.264, this allows to stream to desktops and mobile devices, if you using red5 you can use the VP6 option, red5 doesn’t stream to mobile devices. And then you have frame rate, start by using 20 and increase until you have a good result on both desktops and mobiles, some mobile devices will show a better stream if the frame rate is high.

Now that both the FMLE settings and the RTMP is setup clic “start” at the bottom, your broadcast will start.





Using Wowza Streaming Engine and our wowza control panel to Live Camera Restream

The option Live Camera Restream, on our wowza control panel is used for IP cameras, the output of IP camera is normally RTSP or RTP ( example: rtsp://[camera-ip-address]:554/axis-media/media.amp ).

This format RTP or RTSP is useless for players, by using our wowza server and the Live Camera Re-Stream we convert this signal for playback on all supported player technologies. Some cameras are not supported, please open a ticket and email us the rtsp or rtp for us to check if it works on our wowza servers.

After you order you receive an email with the wowza control panel URL, username (the email) and the password. Login to the wowza control panel and click on to enter the service overview.

click on the image to see the full picture:

the service overview of IP Camera Re-Stream is shown on the image below:

On the right menu, there are some links, Configure, restart, stop, and reporting.

Reporting will give you information on the videos seen, traffic, connections and so on. On the top menu there are some links which provide information on how many viewers you have online which countries and bandwidth used.

Click on “Configure” and then Plugin. On “Shoutcast / Icecast / IPCAM URL” replace http://localhost:8000 with your IP Camera URL, it should be a rtsp or rtp, (ex: rtsp://[camera-ip-address]:554/axis-media/media.amp )

You have to restart the service, at the bottom click “Update Configuration”

After restart the system will take you back to the service overview. Now click “Media Player” on the top menu grab the player code and paste it on your site.

For further instructions on how to use our wowza control panel check the links below:

1- Live streaming

2- TV Station

3- Ondemand Streaming

4- IP Camera Re-Streaming

Ondemand Video Streaming on our Wowza control panel

After you order ondemand streaming you will receive an email with the wowza control panel URL, your username (your email) and a password. Login to the control panel and click on to go to the overview of your server:

click on the image to see the full picture

your server overview will look like the image below.

There are a number of links on the right menu, configure, restart, stop, reporting, Build Playlist, File manager and player links.

I suggest you don’t make any changes on the configuration, the important buttons are “File Manager” were you upload your video files, and “Build Playlist” were you create a playlist and access the 2 players we offering, a flash player and a HTML player.

Reporting will give you information on the videos seen, traffic, connections and so on. On the top menu there are some links which provide information on how many viewers you have online which countries and bandwidth used.

Click on File Manager to upload or drag your videos to the server. Videos must be in flv or mp4 format. You can use a ftp software to upload the videos, but the but click on the video and drag it to the server is probably easier.

Now go back to the server overview and click on “Build Playlist”

click on create a playlist,

enter your playlist name, ex. playlist1 and click “continue”

click on the videos and with the mouse move your available Media from the right to the left which will be your playlist.

When adding the videos you will see on the left the videos uploaded “Available Media” and you need to move the ones you want to the right “Build Your Playlist” some videos may have a exclamation mark, that means the bitrate on the video is higher then the allowed on your package, you better delete these videos from the server and convert them again with the correct bitrate.

Save the playlist and now you can click on the player links, you have 2 options, Flash Player and HTML Player, I suggest you use the HTML Player, nicer and it works on mobile devices also.

Html Player has 2 options, static and dynamic, static every time you add or change your playlist you will have to grab the code and paste it again on your site. the Dynamic player any changes you make on the playlist will show immediately on your site player.

and the flash player:

For further instructions on how to use our wowza control panel check the links below:

1- Live streaming

2- TV Station

3- Ondemand Streaming

4- IP Camera Re-Streaming

TV Station setup on our wowza control panel

After you order TV Station you will receive an email with the link to the wowza control panel and login information, login to the control panel click on the overview icon  and you enter your service overview:

click on the image to see the full picture.

There are a number of links on the right menu, configure, restart, stop, reporting, TV Station, File manager and player links.

I suggest you don’t make any changes on the configuration, the important buttons are “File Manager” were you upload your video files, and “TV Station” were you create a playlist and schedule when to start it date and time and when to stop it. You should create 2 or 3 playlists.

Reporting will give you information on the videos seen, traffic, connections and so on. On the top menu there are some links which provide information on how many viewers you have online which countries and bandwidth used.

Click on File Manager to upload or drag your videos to the server. Videos must be in flv or mp4 format. You can use a ftp software to upload the videos, but the but click on the video and drag it to the server is probably easier.

Now go back to Service Overview and click “TV Station”

on the TV station page you create a playlist, and schedule the date and time to start and date and time to stop. Add the videos and save the playlist, after that you need to restart the service so changes take effect.

When adding the videos you will see on the left the videos uploaded “Available Media” and you need to move the ones you want to the right “Build Your Playlist” some videos may have a exclamation mark, that means the bitrate on the video is higher then the allowed on your package, you better delete this videos from the server and convert them again with the correct bitrate.

after you moved the videos you want to your playlist, save it then restart the server, now at schedule time your videos will start streaming, we suggest that you create at least 3 or 4 playlists.

Go back to the service and click Media Player so you can grab the jwplayer code to paste it on your site.

But the TV Station is not only schedule playlists, you can interrupt and make a live broadcast, on service overview at the bottom there is the RTMP for the FMLE or wirecast, whatever encoder you use, the stream name, username and the password. For instructions on how live streaming is done see this post.

For further instructions on how to use our wowza control panel check the links below:

1- Live streaming

2- TV Station

3- Ondemand Streaming

4- IP Camera Re-Streaming

Live Stream with our wowza control panel and FMLE

After you login to your wowza control panel and click on and you enter the new page with the rtmp info.

to see the image full size click on it.

live streaming wowza control panel

You can see the FMS URL which is the rtmp and stream name and password, you have to enter this on your FMLE:

then click connect and a little windows comes up, for username enter the stream name and the respective password which you copied from the wowza control panel.

select your camera and enter your bitrate, if your account is 560kbps be sure that on the fmle you slightly below it, for video and audio. Now click  Start:

Go back to the wowza control panel, click Media Player to get your jwplayer and paste it on your site, you ready to go.

For further instructions on how to use our wowza control panel check the links below:

1- Live streaming

2- TV Station

3- Ondemand Streaming

4- IP Camera Re-Streaming
